Printing Inline Black Shirts

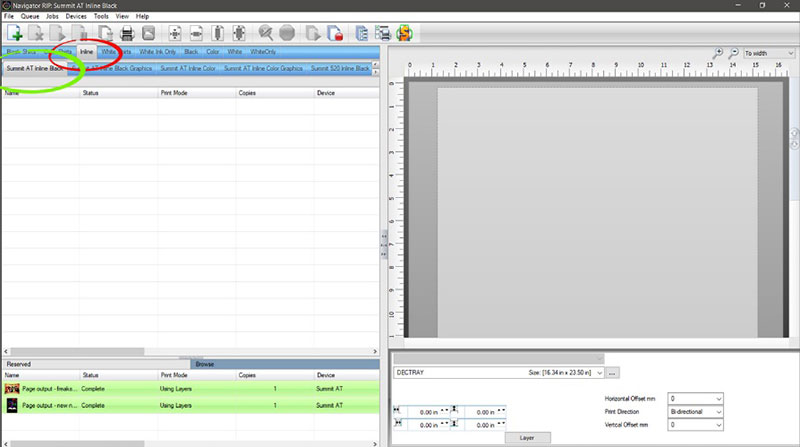

- First make sure you are on the correct Queue and Sub-Queue.

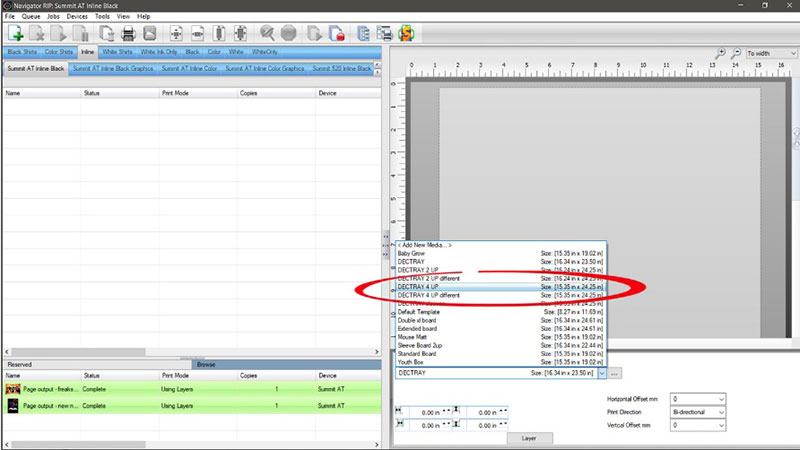

- Select the Decoration Tray 4 Up Platen.

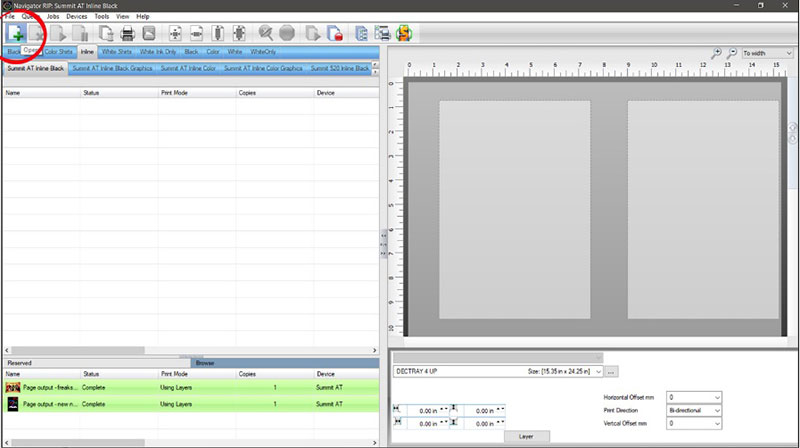

- Now click the Add File Icon.

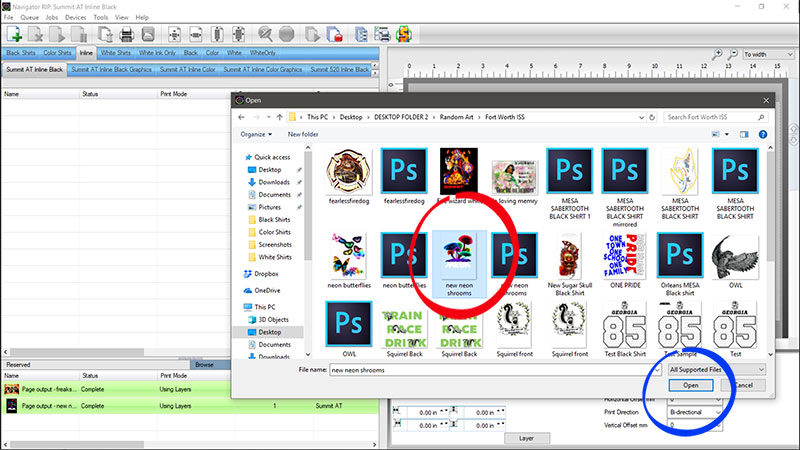

- Now select the file you want and click Open.

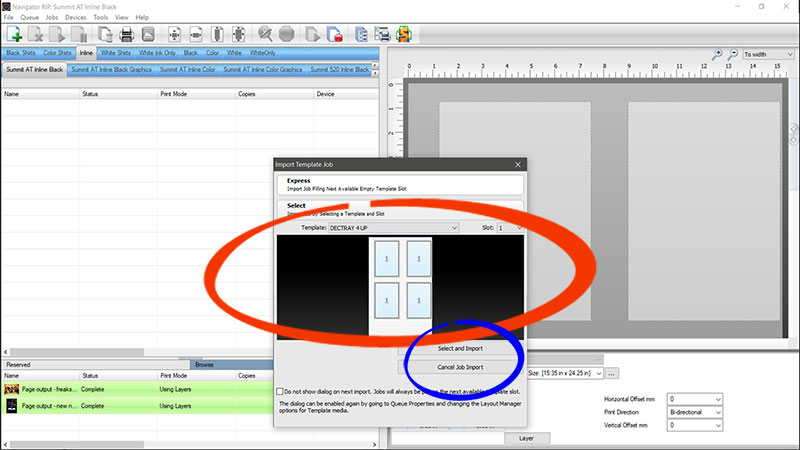

- Make sure to select the Template that matches the Platen you selected. Then click Select and Import.
- Now click on the image thumbnail. This will put a binding box around the image. Then click and drag one of the corner yellow nodes. This will allow you to size and position the image.

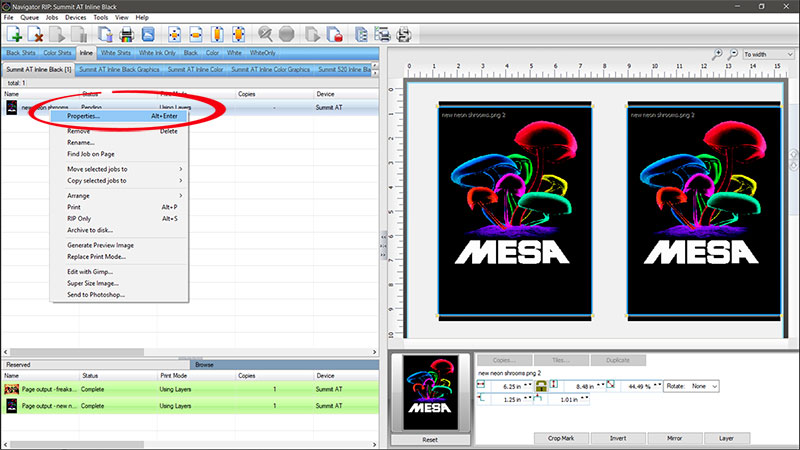

- Right click on the name of the job and then click on Properties.

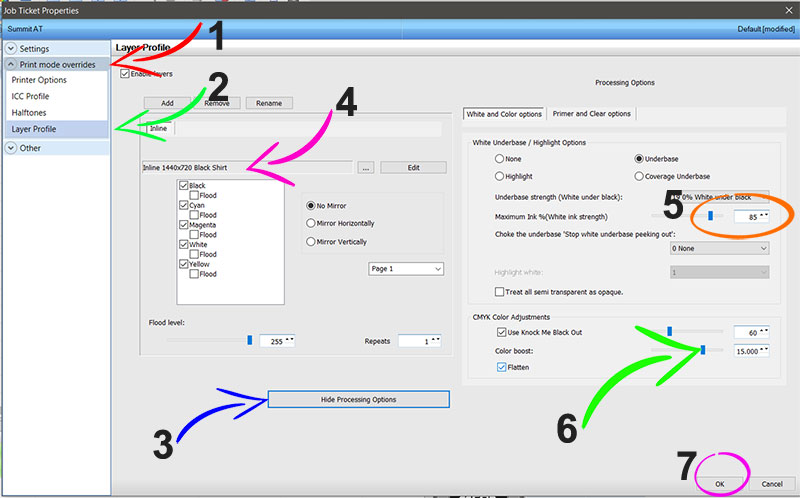

- Now click Print Mode Overrides. Then Layer Profile. Next, at the bottom, Show Processing Options. The Resolution should be set to 1440x720. Maximum White Ink % to 85. Colorboost 15. Click OK.

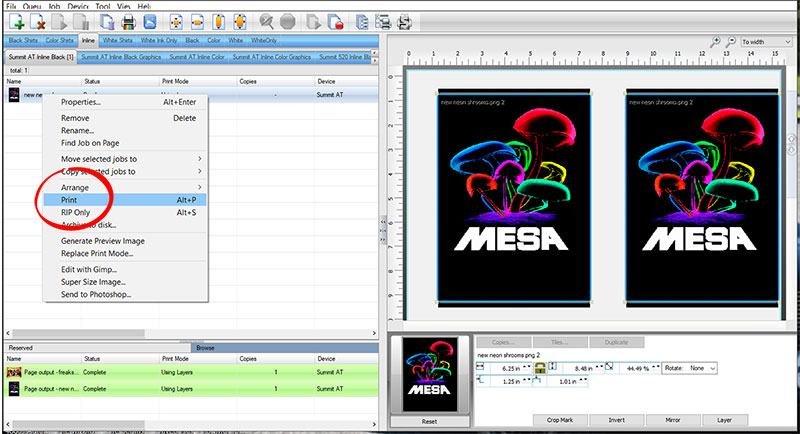

- Last, right click the file name and click Print.
