Printing on Black Shirts

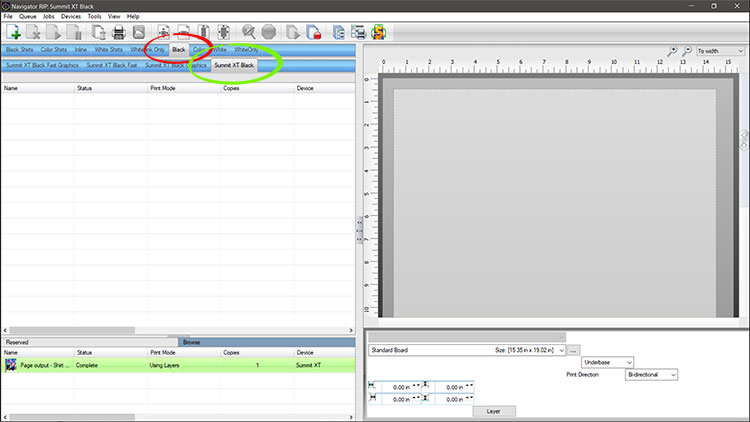

  1. First make sure you are on the correct Queue and Sub-Queue.

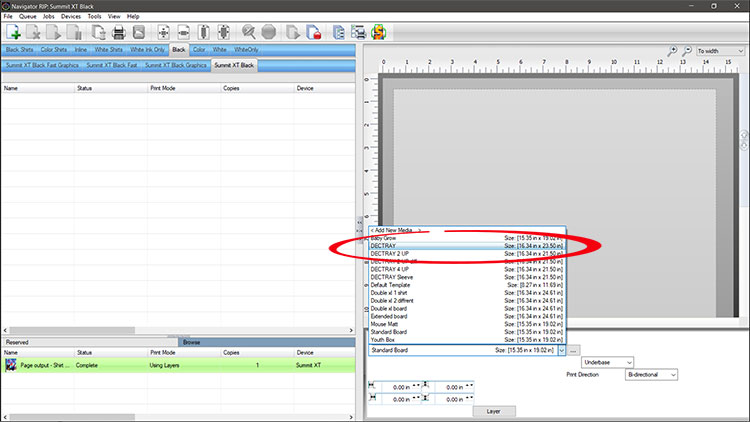

  2. Select the desired Decoration Tray Platen.

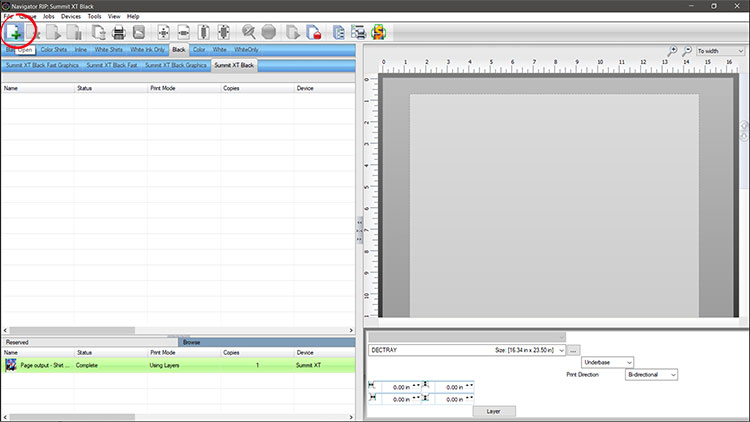

  3. Now click the Add File Icon.

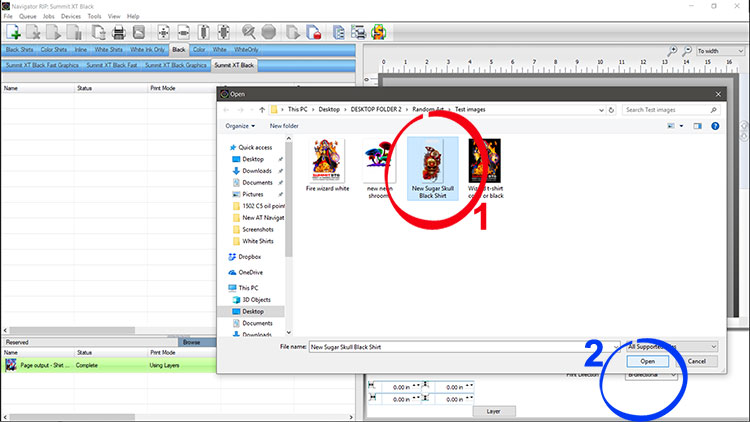

  4. Now select the file you want and click Open.

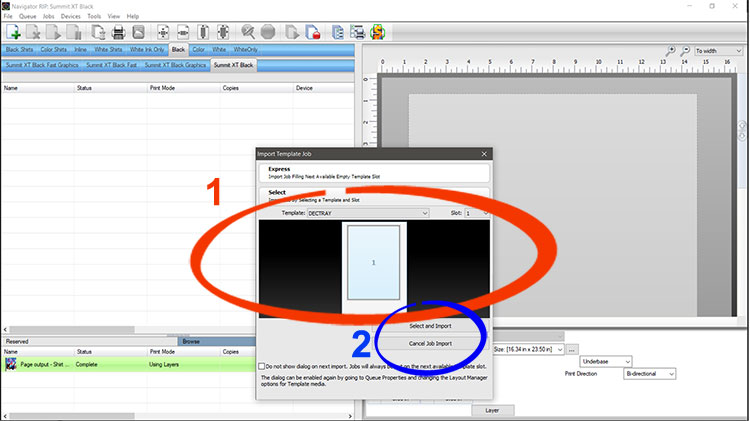

  5. Make sure to select the Template that matches the Platen you selected. Then click Select and Import.

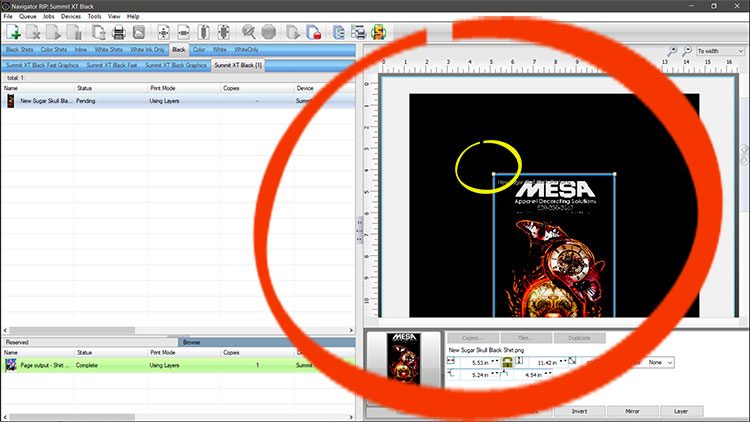

  6. Now click on the image thumbnail. This will put a binding box around the image. Then click and drag one of the corner yellow nodes. This will allow you to size and position the image.

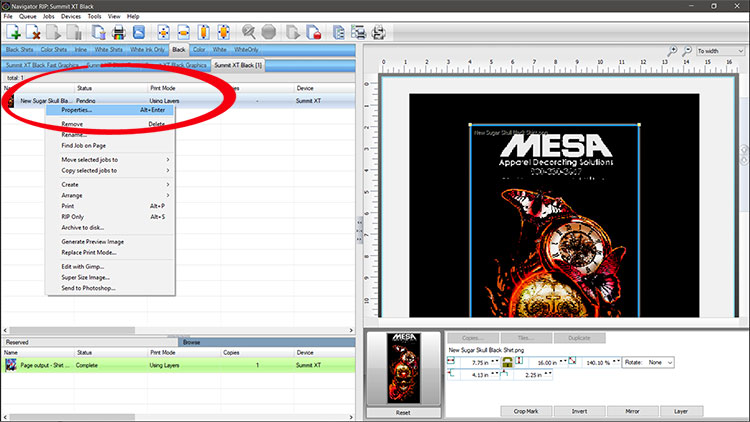

  7. Right click on the name of the job and then click on Properties.

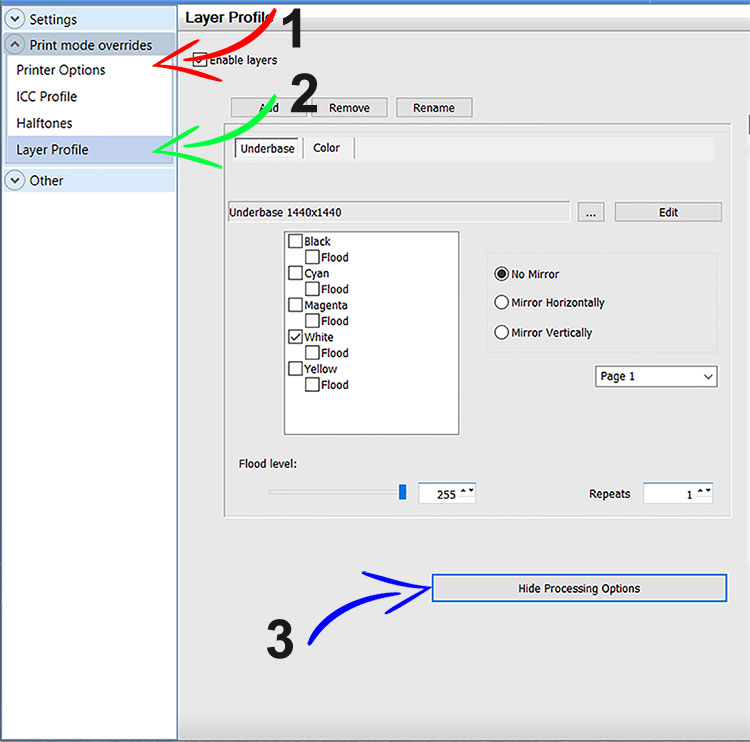

  8. Now click Print Mode Overrides. Then Layer Profile. Next, at the bottom, click Show Processing Options.

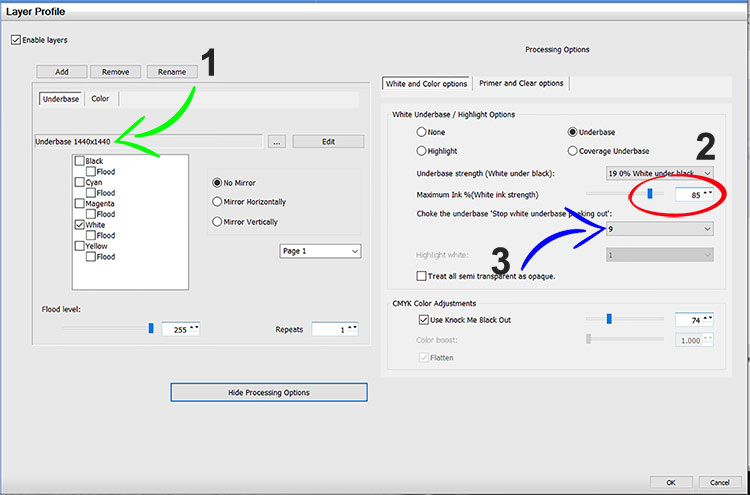

  9. The Underbase should be set to 1440x1440. Maximum White Ink % to 85. Choke Underbase to 9.

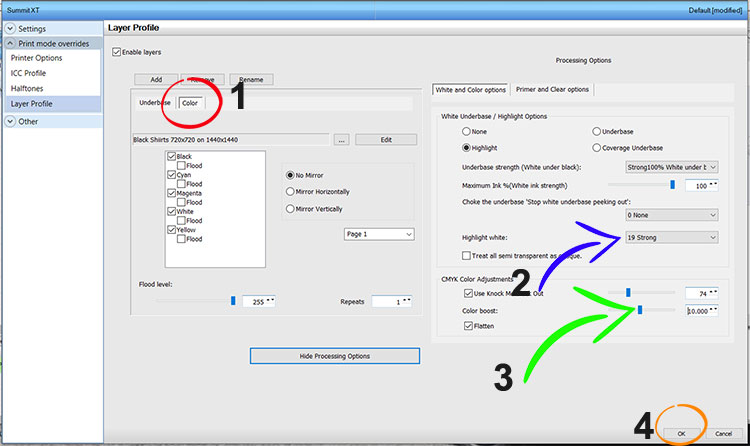

  10. Click Color in selection screen. Highlight White 19 Strong. Colorboost 10. Click OK.

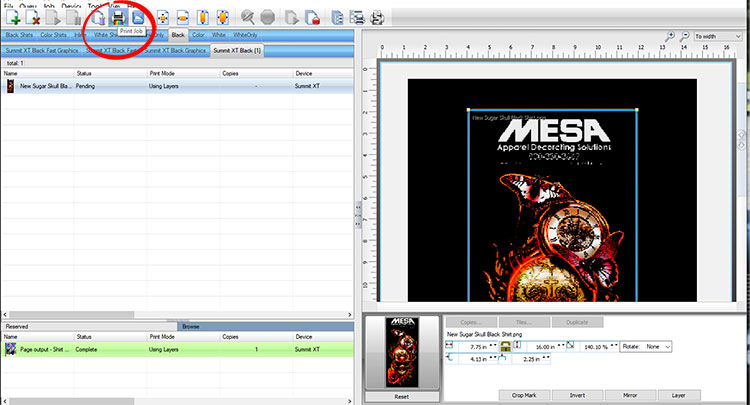

  11. Last, Click the Print Icon.
